Tracklok Vert

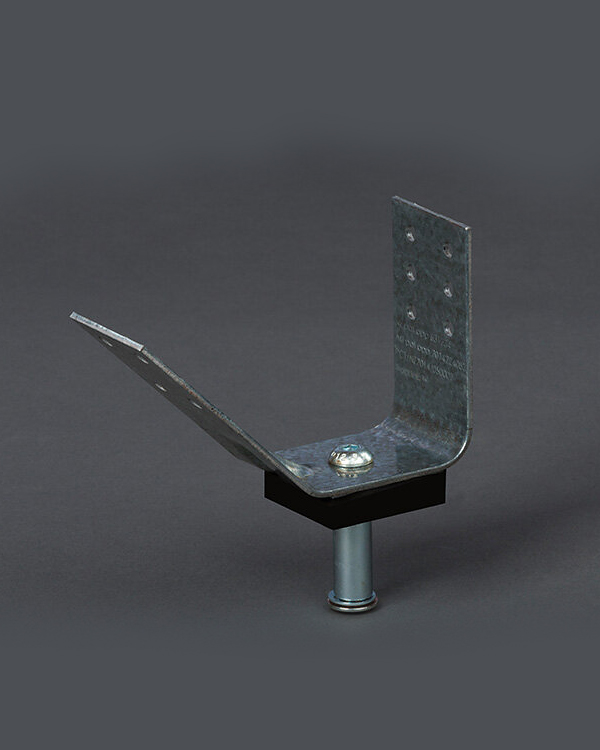

Utilises a vertical arm to avoid service clashes. Connect to the head track (min .75BMT Steel or 1.3mm Aluminium Section) with 10 gauge wafer tek screws or timber top plate (90 x 45mm SG8 Radiata Pine or Douglas Fir) with 10 gauge 35mm wood screws.

Description

CLICK HERE TO DOWNLOAD THE TRACKLOK® VERT 2D COMPONENT DETAIL RFA FILE.

CLICK HERE TO DOWNLOAD THE TRACKLOK® VERT DWG FILE

CLICK HERE TO DOWNLOAD THE TRACKLOK® VERT COMPONENT DETAIL RFA FILE.

CLICK HERE TO DOWNLOAD THE TRACKLOK® VERT TIMBA  DWG FILE

CLICK HERE TO DOWNLOAD THE TRACKLOK® VERT TIMBA COMPONENT DETAIL RFA FILE.

CLICK HERE TO DOWNLOAD THE TRACKLOK® 3D COMPONENT FAMILY RFA FILE.

Tracklok Vert
