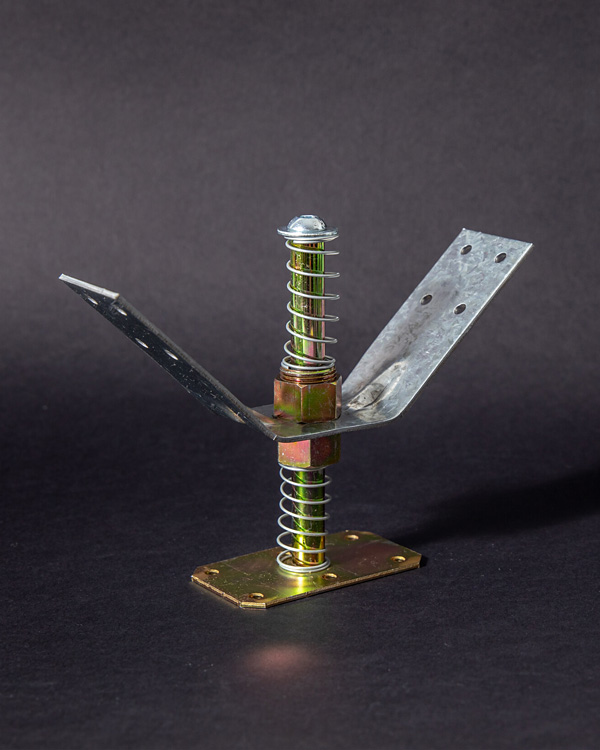

Deflok

Allows for + / – 35mm of vertical deflection in a sealed unit. Connect to the head track (min .75BMT Steel or 1.3mm Aluminium Section) with 10 gauge wafer tek screws or timber top plate (90 x 45mm SG8 Radiata Pine or Douglas Fir) with 10 gauge 35mm wood screws.

Description

CLICK HERE TO DOWNLOAD THE DEFLOK (TIMBER APPLICATION) PDF FILE

CLICK HERE TO DOWNLOAD THE DEFLOK (TIMBER APPLICATION) DWG FILE

CLICK HERE TO DOWNLOAD THE DEFLOK (TIMBER APPLICATION) COMPONENT DETAIL RVT FILE

CLICK HERE TO DOWNLOAD THE DEFLOK (STEEL & ALUMINIUM APPLICATION) PDF FILE

CLICK HERE TO DOWNLOAD THE DEFLOK (STEEL & ALUMINIUM APPLICATION) DWG FILE

CLICK HERE TO DOWNLOAD THE DEFLOK (STEEL & ALUMINIUM APPLICATION) COMPONENT DETAIL RVT FILE
